MOBOT S3 Electric Bicycle

Original price was: SGD $1,699.00.Current price is: SGD $1,399.00. includes prevailing GST

LTA approved with orange seal, EN 15194 certified.

Free LTA Registration and Number Plate.

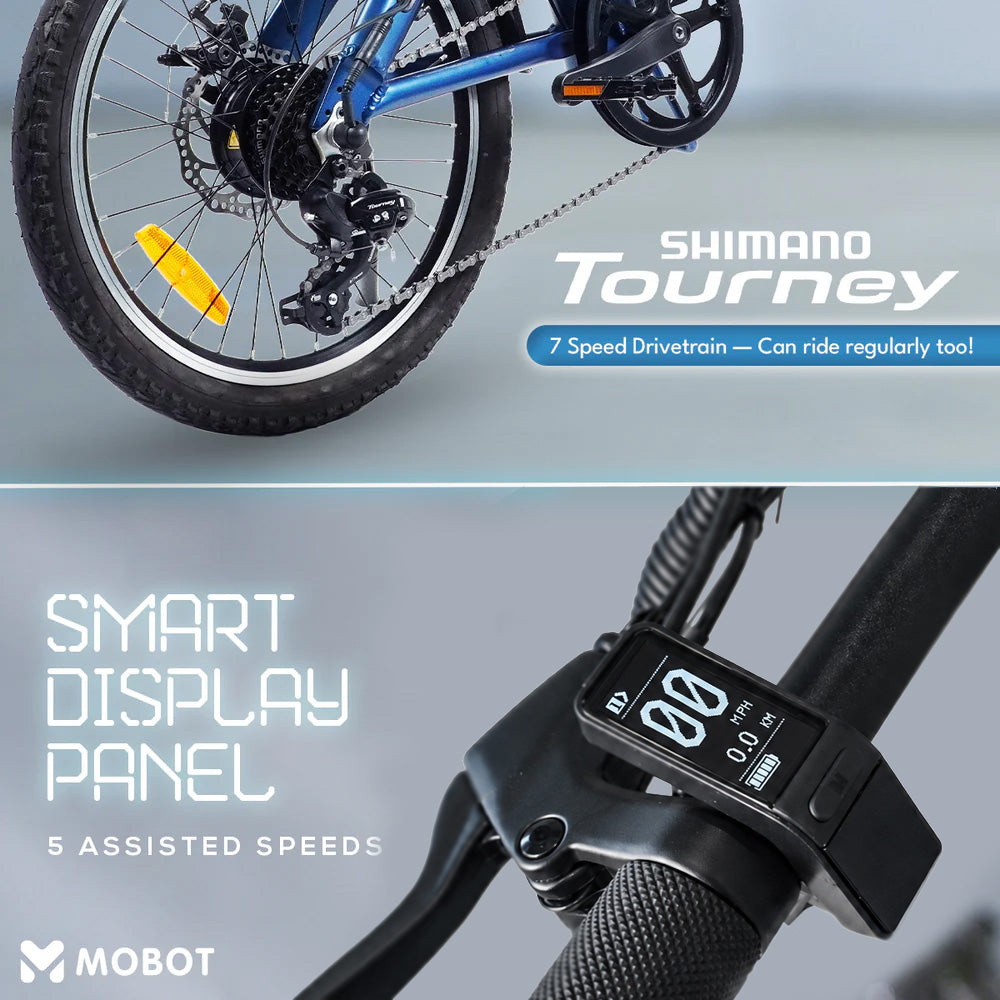

MOBOT S3 is a foldable 20″ ebike with 5 assist modes, 7 speed SHIMANO Tourney drivetrain and seat post with integrated battery.

Shimano Tourney logo

Description

MOBOT S3 LTA approved Electric Bicycle (ebike)

MOBOT S3 is LTA approved affixed with orange seal and EN15194:2017 certified ebike (or electric bicycle).

MOBOT S3 is an incredibly unique foldable ebike, built for city cruising.  S3 is a foldable 20″ ebike with 5 assist modes, 7 speed SHIMANO Tourney drivetrain and concealed battery. Unlike traditional ebike designs where the bulky battery is affixed externally, the S3 battery is integrated into the lockable seat post to form a seamless look.

This electric bicycle is equipped with 5 assist modes and SHIMANO Tourney 7 speed drivetrain to provide an easier gear when riding upslope or a higher gear with cruising downslope. Utilising both the gears and motor assist will save the battery thus creating more distance per charge.

The MOBOT S3 ebike is equipped with a front bag mount and a rear rack for larger items or carrier. This makes the S3 bike the practical choice for city and food delivery riders.

  • Note 1: In Singapore, ebike or electric bicycle is also known as Power Assisted Bicycles (PABs).
  • Note 2: MOBOT S3 ebike is suitable for food delivery riders such as Foodpanda, Grabfood and Deliveroo.
ebike wheel size logo 500x500 1 100x100 - MOBOT S3 Electric Bicycle
Diameter

Wheel size

20″

ebike battery logo 500x500 1 100x100 - MOBOT S3 Electric Bicycle
Capacity

Battery

36V 10.4/11.6AH

ebike range logo 500x500 1 100x100 - MOBOT S3 Electric Bicycle
Full charge

Range⁴

25-40 km

SPECIFICATIONS

  • Wheel size: 20″ (406)
  • Dimensions: 1477 mm (L) x 600 mm (W) x 1142 mm (H)
  • Folded dimensions: 840 mm (L) x 500 mm (W) x 700 mm (H)
  • Frame: Aluminium alloy T6061
  • Fork: Aluminium alloy T6061
  • Handlebar: Aluminum alloy T6061, 22.2/25.4 mm Ø x 580 mm
  • Seatpost: Aluminium alloy, battery integrated, 57 mm Ø x 635 mm
  • Rims: Aluminium, 20"
  • Tyres: 20" x 1.95 (50-406), pneumatic
  • Suspension:
  • Rack: Rear, Max load 15 kg
  • Weight: 19.9 kg
  • Max load: 120 kg
  • Recommended rider's weight: Less than 85 kg
  • System voltage: 36V
  • Motor: 250W, 5 assist modes
  • Battery capacity: 10.4AH or 11.6AH
  • Drivetrain: 7 speed, chain drive
  • Sensor: Cadence
  • Chainring: 52T
  • Freewheel: 14-28T
  • Crank length: 170 mm
  • Shifter: SHIMANO Tourney SL-TX30-7R
  • Rear derailleur: SHIMANO Tourney RD-TY300D
  • Brake: JAK, mechanical, 160mm rotor disc
  • Front light: DH001, 25 lux
  • Rear light: Reflector
  • Mudguard: Yes
  • Note 3: Product specifications subjected to change without notice.
  • Note 4: As the actual range the ebike can travel depends on a lot of factors. Key factors such as weight of rider, load, assist mode, terrain, riding style and condition of the ebike affect the actual range. As such, the range indicated is based on a new ebike, 60kg rider, no additional load, mid assist mode, travelling on a straight path continuously.
  • Note 5: The actual maximum assisted speed the ebike can attain depends on a lot of factors. Key factors such as weight of rider, load, assist mode, terrain, riding style and condition of the ebike affect the maximum assisted speed. As such, under an unladen, no resistance and highest assist mode condition, the maximum speed is between 22 to 24 km/h.
  • Note 6: The price excludes a $11 transfer fee payable directly to Land Transport Authority via LTA onemotoring website.
  • Note 7: Riding in rain, through deep water or splashing through puddles can lead to water entering the electrical components such as controller, LCD meter, sensor and motors. This may cause the ebike to malfunction. Such water damages are not covered under the warranty.
  • Note 8: Any modifications to the ebike will pose a safety risk as the ebike is not tested to the modifications. In particular, modifications to the frame, front fork, rear rack, and any electrical components such as the motor, battery, controller, sensor, and meter may have serious consequences such as accidents, breakage, fire, or total component failure.
Important note

Electric bicycles (ebikes) are also known as Power-Assisted Bicycles (PABs).

This ebike is type approved by LTA and certified to EN15194.

The use of e-bike in Singapore is regulated by the authorities. Some of the important ebike regulations are:

  • PAB rider must wear a helmet when riding on roads;
  • PAB rider and pillion must be 16 years and above;
  • PABs cannot be used on pedestrian pathways;
  • PAB rider must pass ebike safety theory test; and
  • PAB must not be modified.

For more information on LTA ebike regulations, click here.

LTA advisory message

If you intend to ride a bicycle, PAB or PMD on any public path, please ensure that the device meets the following criteria before riding:

  • Must be registered with LTA (applicable to PABs and PMDs);
  • Maximum weight not exceeding 20kg;
  • Maximum width not exceeding 70cm;
  • Maximum motorised device speed of 25km/h (applicable to PMDs) or maximum motor-assistance speed of 25km/h (applicable to PABs);
  • Must be UL2272-certified (applicable to motorised PMDs);
  • Must comply with the EN15194 standard (applicable to PABs);
  • Must be type approved by LTA (applicable to PABs);
  • Maximum continuous rated power of 250W (applicable to PABs); and
  • Must not have any start-up assistance / throttle feature (applicable to PABs).
Warranty
  • 6 months (carry-in) under normal usage.
  • Does not include wear & tear and consumable parts, not limited to tyres, brake pads, chain, sprockets.
  • Others items exclude from warranty are paint, chrome components, polished surfaces, saddles and handgrips where deterioration may be caused by normal usage, poor maintenance or natural degradation of surfaces.
  • Does not cover damages due to water/moisture, accident and misuse.
  • Warranty may be void if critical components are modified or replaced with non original or non compatible parts.
  • Not applicable for international orders. (ie outside of Singapore.)

For full warranty terms and conditions, refer to Warranty Policy.

Fire Safety Tips from SCDF & LTA
Fire Safety Tips On Preventing Batteries Fire English scaled - MOBOT S3 Electric Bicycle
Fire Safety Tips On Preventing Batteries Fire Mandarin scaled - MOBOT S3 Electric Bicycle

You can download a copy of the Fire Safety Tips On Preventing Batteries Fire pamphlet here.

Watch these videos

Specification
Weight 25 kg
Dimensions 89 × 46 × 67 cm
Motor

36V 250W Brushless Motor

Drive

Rear Drive

Max Load

120kg

Max Speed (No load)

Not Applicable (Motor assist cut off before 25 km/h)

Reverse Speed (No load)

Not Applicable

Gradeability

10°

Throttle

Pedal-Assist

Battery Type

High Quality 18650 Lithium Ion Battery

Range (Battery)

25 – 40 km

Charging Time

5 – 7 hours

Front Tyre

20" Pneumatic

Rear Tyre

20" Pneumatic

Front Brake

Disc Brake

Rear Brake

Disc Brake

Unfolded Dimension ( L x W x H )

1477 x 600 x 1142 mm

Width

600 mm

Nett Weight

20kg

Gross Weight (With Product Packaging)

25kg

Folded Dimension ( L x B x H )

840 x 500 x 700 mm

Built-in Seat

Adult Seat

Optional Add-on Seat

Not Available

LCD Display

Yes

Kickstand

Yes

Color

Black Cherry Pearl

,

Navy Blue

,

Tiffany Blue

,

Khaki Green

Additional Feature

Detachable battery

Limited Warranty

6 months (Carry-in)

Safety Standard

EN15194

,

Singapore Safety Mark (Charger)

UL2272 Certified

Not Applicable (Electric Bicycle)

Disclaimer

Product specifications subjected to change without notice.

Shipping & Delivery

For e-scooters and ebikes, due to Land Transport Authority (LTA) limited inspection and registration services, delivery may be affected.

FREE delivery for all electric scooters (e-scooters) and electric bicycles (ebikes) within Singapore.

Once an order has been placed, you will receive a confirmation email from us and our team will contact you to arrange for delivery.

Orders placed on Saturdays, Sundays and Public Holidays will be processed on the following business day.

As part of our quality assurance, all electric scooters, electric bicycles, bicycles and mobility scooters will be pre-assembled and tested before delivery.

Self-collection is available at:
62 Ubi Road 1, Oxley Bizhub 2, #03-23, Singapore 408734
Monday - Sunday 11am to 7:00pm

Purchases made with Atome may take up to 7 days to delivery.

Once an order has been placed, you will receive a confirmation email from us.

All international orders will take 2-3 working days to process and we will update you with a tracking number as soon as possible.

As part of our quality assurance, all mobility devices such as bicycles, ebikes, e-scooters and mobility scooters will be remove from their boxes, inspected and tested before putting back into the box for delivery.

For bicycles and ebikes, we recommend that you bring it to your local bike shop for a pre-ride check.

Shipping cost does not include duties and taxes. Please contact us for an estimate at [email protected]

User Manual

Click file to download: User Manual MOBOT S3 (R1)
